BJC ELEMENTS

D R Distribution offers a range of elements for a wide range of applications. To learn more about any of the products listed below, you can contact us HERE.

ELEMENTS

Drum Heater
Drum Heater

DRUM HEATERS


Applications

The 200 litre (44 Gallon) drum is still today the container of choice to hold many solid, liquid and semi-liquid products. To heat these products, and electric drum heater is the safest and most efficient way of heating the contents. BJC Elements manufactures a range of different drum heaters suitable for many industrial and commercial applications.

We are also able to design and build multi drum heater ovens to suit your application.


Download PDF
commercial heating - High Mount

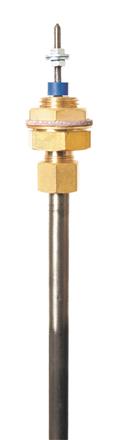

MULTI-PURPOSE ELEMENTS


Applications

Multi-purpose elements give the user the ability to shape or modify an elementfor use in a wide variety of heating applications, whether in liquid, acid, alkaline or air environments. These elements are ideally suited for prototype runs or urgent repairs.

MPE Construction:
  • All BJC MPEs are constructed from the highest grade materials
  • All BJC MPEs are uniformly annealed for ease of forming.
  • 1/8" Whitworth terminal pins allow for universal connections.
  • M16 compression bushes for ease of mounting are available.
  • BJC MPEs are ideally suited for machine breakdowns and prototype runs etc., as the elements are readily available ex stock.

Download PDF
Thermofin Finned Air Heater1
Thermofin Finned Air Heater2
Thermofin Finned Air Heater3

THERMOFIN F1129 SERIES
Stainless Steel
FINNED AIR HEATERS


Sheath Watts Density
Sheath 44.5kW/m2 (29W/in2) Fin and Sheath total 7.0kW/m2 (4.5W/in2) at 235V

Construction

Continuous spiral stainless steel fin on 10.7mm diameter stainless steel element. Diameter over fin 30mm. Fin pitch 5.0mm

Finish

Annealed 304 Stainless Steel

Mounting

Zinc plated bushes with M16 thread 16mm long. Clearance hole of 18mm required. Nuts & washers included.

Download PDF

Thermofin Finned Air Heater1
Thermofin Finned Air Heater2
Thermofin Finned Air Heater3

THERMOFIN F1141 SERIES
Stainless Steel
FINNED AIR HEATERS


Sheath Watts Density
Sheath 64kW/m2 (41W/in2) Fin and Sheath total 10kW/m2 (6.5W/in2) at 235Volts.

Construction

Continuous spiral stainless steel fin on 10.7mm diameter stainless steel element. Diameter over fin 30mm. Fin pitch 5.0mm

Finish

Annealed 304 Stainless Steel

Mounting

Zinc plated bushes with M16 thread 16mm long. Clearance hole of 18mm required. Nuts & washers included.

Download PDF

Thermofin Finned Air Heater1
Thermofin Finned Air Heater2
Thermofin Finned Air Heater3

THERMOFIN F865 SERIES
Stainless Steel
FINNED AIR HEATERS


Sheath Watts Density
Sheath 101kW/m2 (65W/in2) Fin and Sheath total 18.2kW/m2 (11.8W/in2) at 235V

Construction

Continuous spiral stainless steel fin on 8mm diameter stainless steel element. Diameter over fin 25mm. Fin pitch 5.0mm

Finish

Annealed 304 Stainless Steel

Mounting

Zinc plated bushes with M16 thread 16mm long. Clearance hole of 18mm required. Nuts & washers included.

Download PDF

Thermofin Finned Air Heater1
Thermofin Finned Air Heater2
Thermofin Finned Air Heater3

THERMOFIN F886 SERIES
Stainless Steel
FINNED AIR HEATERS


Sheath Watts Density
Sheath 133kW/m2 (86W/in2) Fin and Sheath total 23.9kW/m2 (15.4W/in2) at 235Volts.

Construction

Continuous spiral stainless steel fin on 8mm diameter stainless steel element. Diameter over fin 25mm. Fin pitch 5.0mm

Finish

Annealed 304 Stainless Steel

Mounting

Zinc plated bushes with M16 thread 16mm long. Clearance hole of 18mm required. Nuts & washers included.

Download PDF
